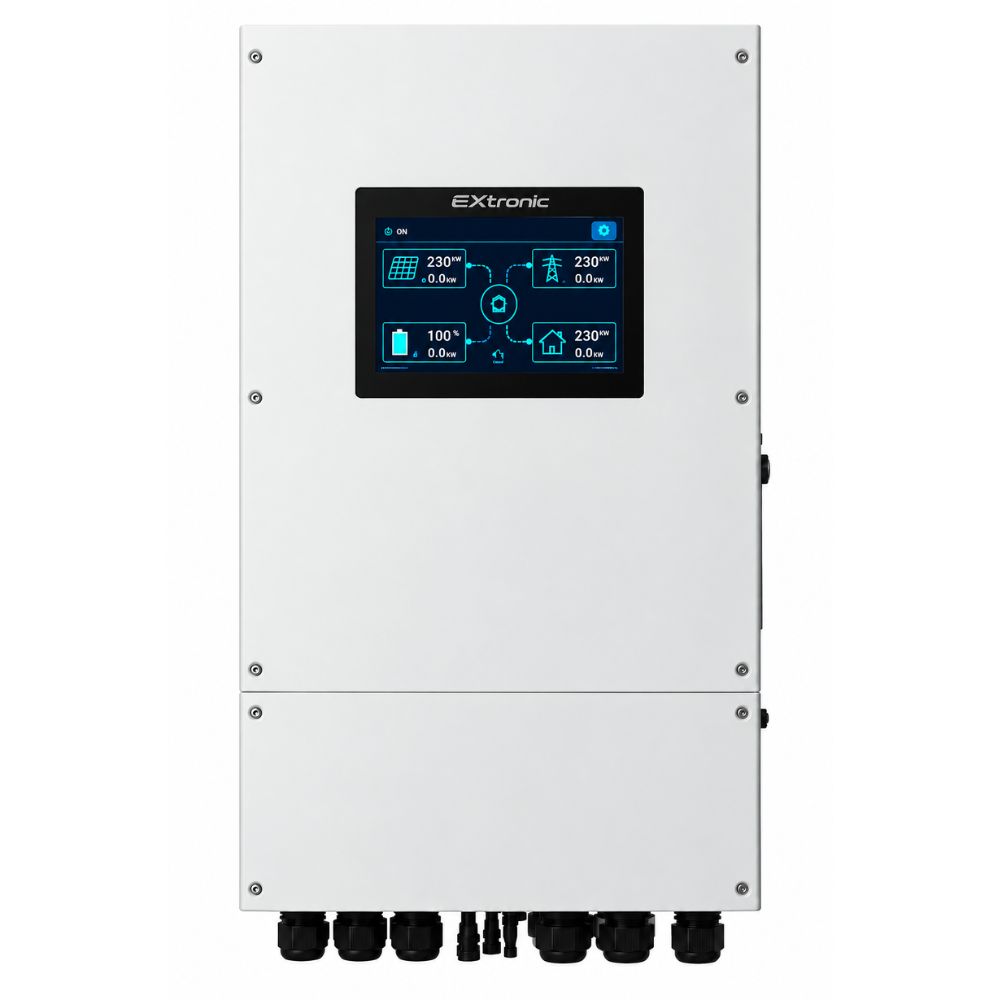

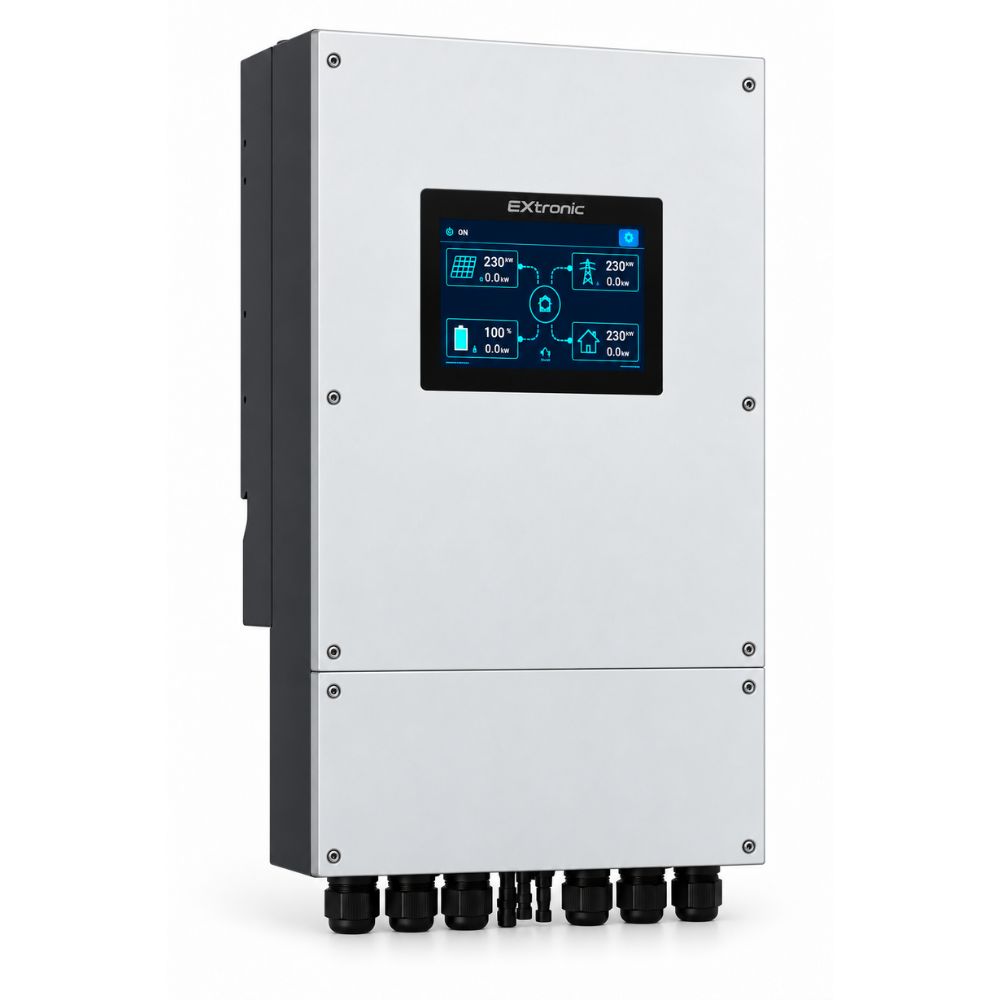

EXtronic X Series — Hybrid Inverter with 7″ HMI LCD, IP66
| Specification | EXtronic X7 |
| Inverter Capacity | 6.6 kW |
| Phase | 1-phase in / 1-phase out |
| Maximum PV Input Power | 12000W |
| Rated Output Power | 6600VA / 6600W |
| Maximum Charging Power | 6600W |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184–264.5 VAC or 195.5–253 VAC or 182–260 VAC (Selectable) |
| Nominal Output Current | 28.7A |
| Power Factor | >0.99 |
| Maximum Conversion Efficiency (DC/AC) | >97% |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 60–80 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90–280 VAC or 170–280 VAC |
| Frequency Range | 50 Hz / 60 Hz (Auto sensing) |
| Maximum AC Input Current | 40A |
| PV INPUT (DC) | |
| Maximum DC Voltage | 500 VDC |
| MPP Voltage Range | 120–450 VDC |
| Number of MPP Trackers / Maximum Input Current | 2 / 21A |
| Number of Strings per MPP Tracker | 1 |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure sine wave |
| Efficiency (DC to AC) | 93% |
| BATTERY & CHARGER | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range | 40–60 VDC |
| Nominal DC Voltage | 48 VDC |
| Maximum Solar Charging Current | 135A |
| Maximum AC Charging Current | 135A |
| Maximum Charging Current | 135A |
| PHYSICAL | |
| Dimensions, D × W × H (mm) | 192 × 418 × 633 |
| Net Weight (kg) | 23.5 |
| INTERFACE | |
| Parallel Function | Yes, 9 units |
| Communication Port | RS-232 / RS485, WiFi |
| ENVIRONMENT | |
| Humidity | 0–100% Relative Humidity (Non-condensing) |
| Operating Temperature | −10°C to 50°C |
| PROTECTION & CERTIFICATE | |
| Safety/EMC Standard | IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 61000-6-2/4, IEC 61683, IEC 62116, IEC 61727 |
